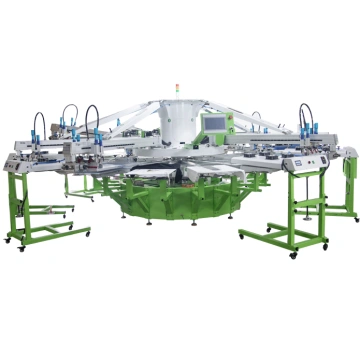

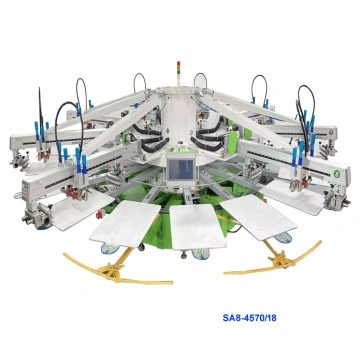

Automatic T Shirt Screen Printing Machine

Automatic T Shirt Screen Printing Machine

Product Item : SA8-4565/18
Category：Octopus screen printing machine
Model No. : SA8-4565/18
Brand : KC
Type Of Printing Plate : Screen Printer
Applicable Industry : Garment Shops, Food &Amp; Beverage Factory, Food Shop, Food &Amp; Beverage Shops
INQUIRY EMAIL

Printed samples

Full Automatic T-shirt screen printing machine

This is a rotary clothes 6-color manual Screen Printing Machine, suitable for printing 450mm * 650mm about the format of the fabric, paper, clothes; T-shirts and other products.
Running smoothly, cost-effective. Widely used in multicolor printed clothing and textile sectors.
Workbench coated with solvent glue is recommended for accurate print positioning;
Have place since the lock mechanism, accurate positioning, set-bit precision can reach 0.025mm;
Center vertical shaft structure design, smooth rotation, lightweight and comfortable, greatly reduce the labor intensity of the operator;
More suitable for heat set printing ink, printing ink thickness, ink, bright;
Configuration of infrared drying device, which will help the plastisol ink is fast drying;
automatically Screen rotation arrangement, the operator independent of each other and co-ordination, printing and high efficiency.
PLC Operation technical;

SA6-4565 6-colour automatically rotating flat screen printing machine

Max printing thickness:0-20 MM;
Net weight: 965KG;
Max printing area:400X600mm
Size of working table: 450×650mm;
Max printing speed:2500cs/H.
Printing number: 6;
Drying mode: IR;
Max height of screen frame: 40mm;
Max size of screen frame: 550*680mm;
Wattage of heater: 30KW.

3 Phase 380V Power supply;
5-7 Bar compress air

Gross weight: 1010kg
Wooden case dimension:2430×2430×1850mm;
10.9241CBM

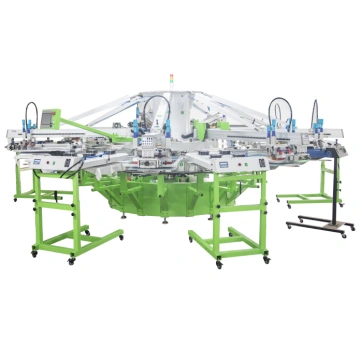

Automatic Octopus screen printing machine/Advantage

Full automatically operation process ;
Total-steel rotating-axis system ensure whirling free and Adaptability.
High-strength support pole make the machine structure rigidity.
Six-color screen printing one time, overprint is precision .
Screen frame can be adjustable according to different objects to be printed.
Screen frame can be rise up after printing so that printing quality.
High-stabilization working table ensure non-shaking when printing;
IR dryer with machine make the clothes drying fast
PLC controlling ensure operation more easier

Details description

There are many structures of Screen Printers, but you will find that the structure of screen printers for printing clothing pieces is very different from that of screen printers for printing plastic, paper, glass and other products. Screen printers for fabric pieces are usually designed in a form where the screen and printing head rotate around the central axis, similar to an octopus. We call this type of screen printer an octopus screen printer.

1) The workbench generally uses a flat aluminum plate, on which glue can be applied during printing. The glue can bond the clothing pieces to the workbench to prevent movement;

2) The screen and workbench of a manual screen printer will rotate around the central axis to achieve multi-color screen printing. The Automatic Screen Printing Machine table keeps rotating to achieve multi-color screen printing;

3) The printing device generally adopts front and back scraping printing, which makes it easier to place products, check products, and achieve multi-color accurate overprinting;

4) A swing drying device is usually set between printing stations to facilitate the drying of the ink layer and prevent the next color printing from causing ink color bleeding;

5) The drying device on the screen printing machine often only dries the ink layer on the surface and dries it thoroughly. A separate tunnel drying furnace can be used for drying, which can improve production efficiency.

Screen printing machines face fierce competition from printers. Printers have developed rapidly due to the lack of complex processes such as plate making and color matching, but they are still difficult to compare with screen printing machines in terms of three-dimensional patterns and bright colors with very strong surface power. They play a powerful role in clothing printing in the market.

001

Structural Features of Fully Automatic T-shirt Screen Printing Machine

Work Table– T-shirts or garment cut pieces are typically single pieces, similar to single sheets in other printing processes. These garments are made of fabrics, which have a loose surface structure and a soft texture, making precise positioning difficult. Additionally, multi-color printing is often required and usually carried out by a single operator. Therefore, the worktable or screen frame must be able to rotate around a central axis. Fully automatic T-shirt screen printing machines typically adopt a rotary table structure. To keep the T-shirt flat during printing, the worktable is coated with platen adhesive, and thus, the worktable is of a flat plate design.
Drying Unit– The inks used for T-shirts and garment materials are usually plastisol or silicone-based inks, which require a drying method. The drying unit on fully automatic T-shirt screen printing machines is known as aswing-type dryer. Its principle is similar to other drying lines, but its structure differs. Swing-type dryers are generally used for surface drying during color registration. However, complete drying of the ink still relies on tunnel dryers or air drying.
Control Panel– Automation is a prevalent trend in the modern printing machinery industry. Due to the complexity of operations and programming, a user interface panel is essential. Fully automatic T-shirt screen printing machines are no exception. The integrated panel efficiently manages print settings, table rotation, and drying processes, making it easier for operators to adjust processes according to different customer requirements.
Positioning Device– Positioning is essential for consistency in the printing process. T-shirts and fabric materials are inherently unstable in size, making precise positioning difficult. However, this can be achieved by placing the fabric on the worktable and using table positioning. For example, determining when the table stops rotating and when the screen frame descends for printing are simple tasks from a mechanical engineering standpoint.
Rotary and Oval Table Structures– For most users, a print size of 400×600 mm or around 10 colors is sufficient for T-shirts or garment pieces. However, some customers demand larger sizes and more colors. In such cases, the traditional rotary table structure becomes inadequate. Therefore, many machines on the market now useoval tablestructures. Some of these machines even integrate with digital printers from the outset.
