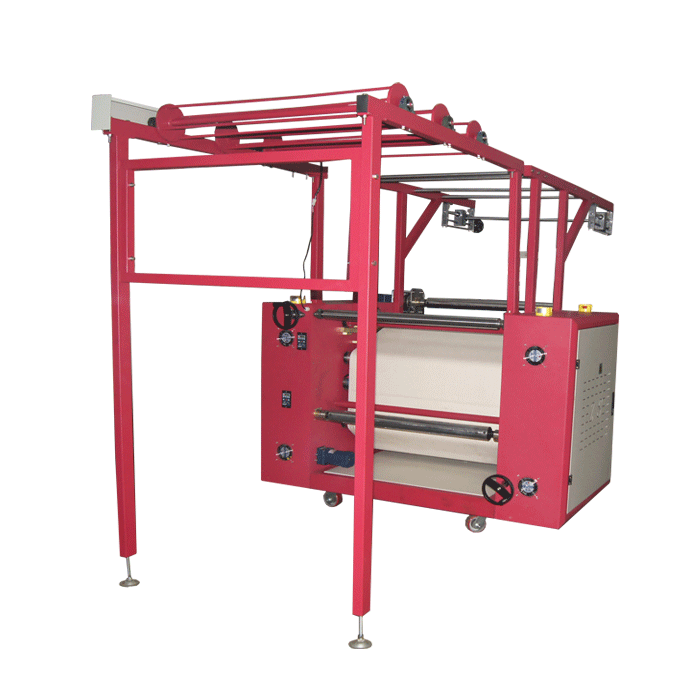

  • Zipper heat transfer machine AB4290Z  - Image 1
  • Zipper heat transfer machine AB4290Z  - Image 2
  • Zipper heat transfer machine AB4290Z  - Image 3
  • Zipper heat transfer machine AB4290Z  - Image 4
  • Zipper heat transfer machine AB4290Z  - Image 5
Zipper heat transfer machine AB4290Z  - Image 1Zipper heat transfer machine AB4290Z  - Image 2Zipper heat transfer machine AB4290Z  - Image 3Zipper heat transfer machine AB4290Z  - Image 4Zipper heat transfer machine AB4290Z  - Image 5

Zipper heat transfer machine AB4290Z

Item NO.:

AB4290Z

First name:

Auto Heat-transfer Machine for Lanyard, Webbing, Label

Voltage:

110V/220V/380V

Dimension:

Machine: L168*W116*H147cm, Working Table: L200*W130*H190cm

Color:

Red or Blue

Power:

42KW

Roller Width:

900mm

Roller Diameter:

420mm

Temp.Range:

0-400°C

Noise:

30QB

Speed:

120-150m/h, 144-180m2/h,1152-1440 m2/d

Package Size:

L175*W125*H190cm, cbd:4.16m3

Packing

Wooden Box, 1set machine + 1set working table

Installation size:

L190*W500*W150cm, cbd: 14.25m3

N.W.:

900KG

G.W:

1000KG

Functions
  • Independent welding table, easy to install and remove;
  • Adjustable torque put paper roller, paper conveying stable balance;
  • Anti-pinch device to ensure safe operation;
  • Microcomputer operation panel, simple and reliable;
  • High burning point conveyor blankets, flame retardant performance; blanket thickness uniformity, the transfer effect is good;
  • Teflon coating heating roller, effectively prevent electrostatic interference in the transfer process, roller temperature is small;
  • Brand conductive oil, heat stable and uniform;
  • Adjustable blanket roller rack pressure mechanism, pressure adjustment is simple and convenient;
  • Brand electrical components, long life, low failure rate;
  • PVC conveyor belt, isolation paper reel, ribbon drive shaft speed can be independently flexible adjustment;
  • Independent blanket correction structure;
  • Special small diameter roller design, machine covers an area of small;
  • Tension adjustment structure, to ensure that the cloth and paper transfer process of tension balance.
