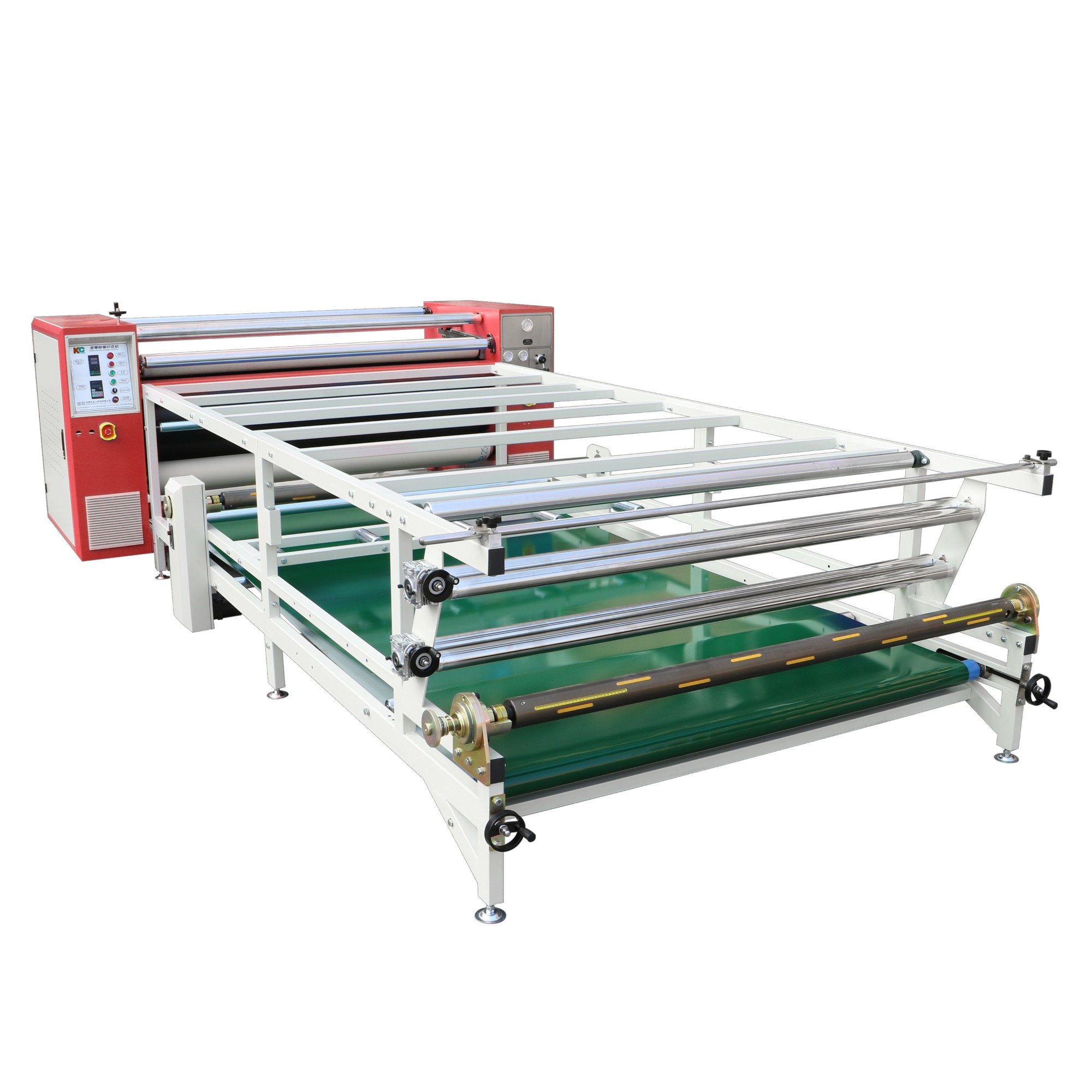

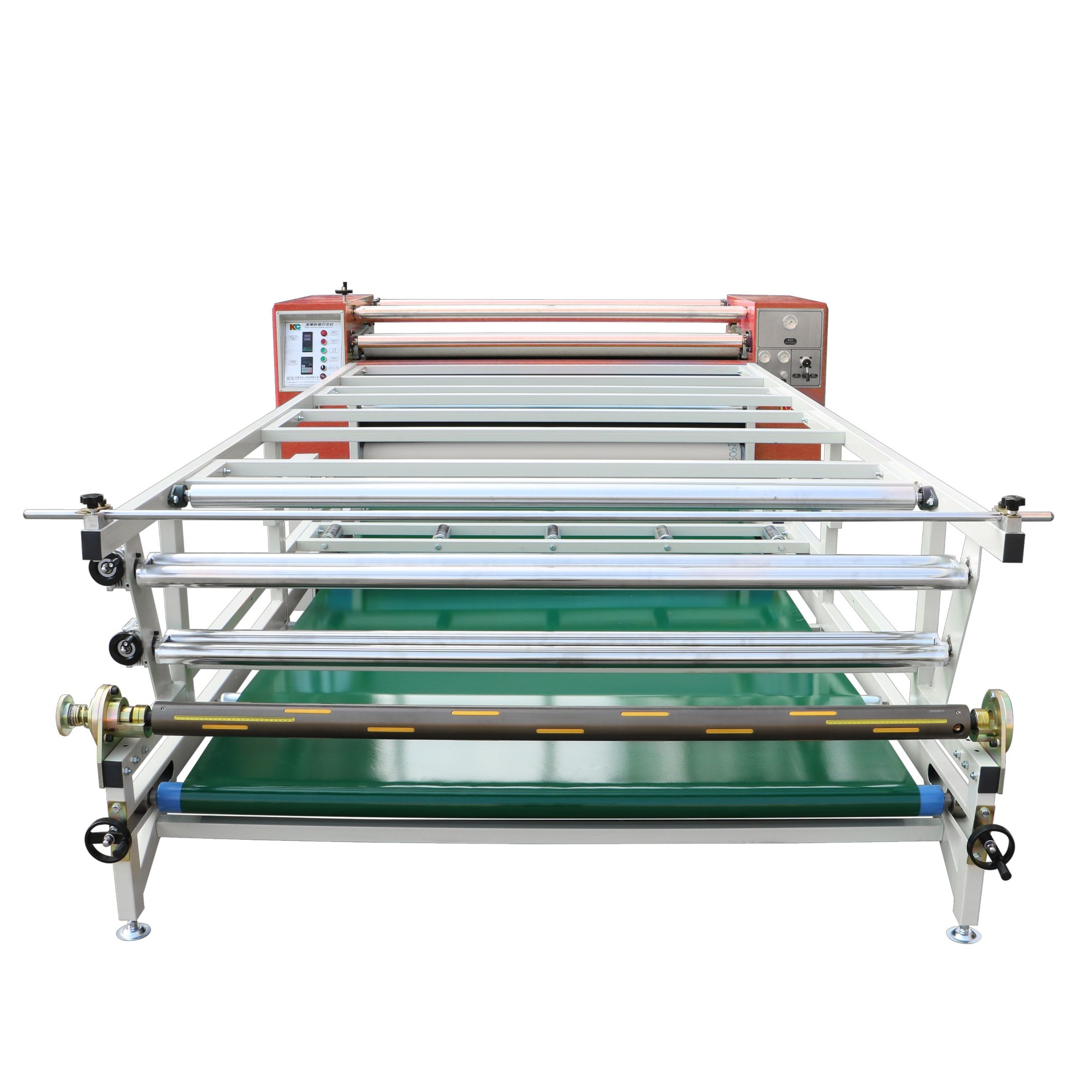

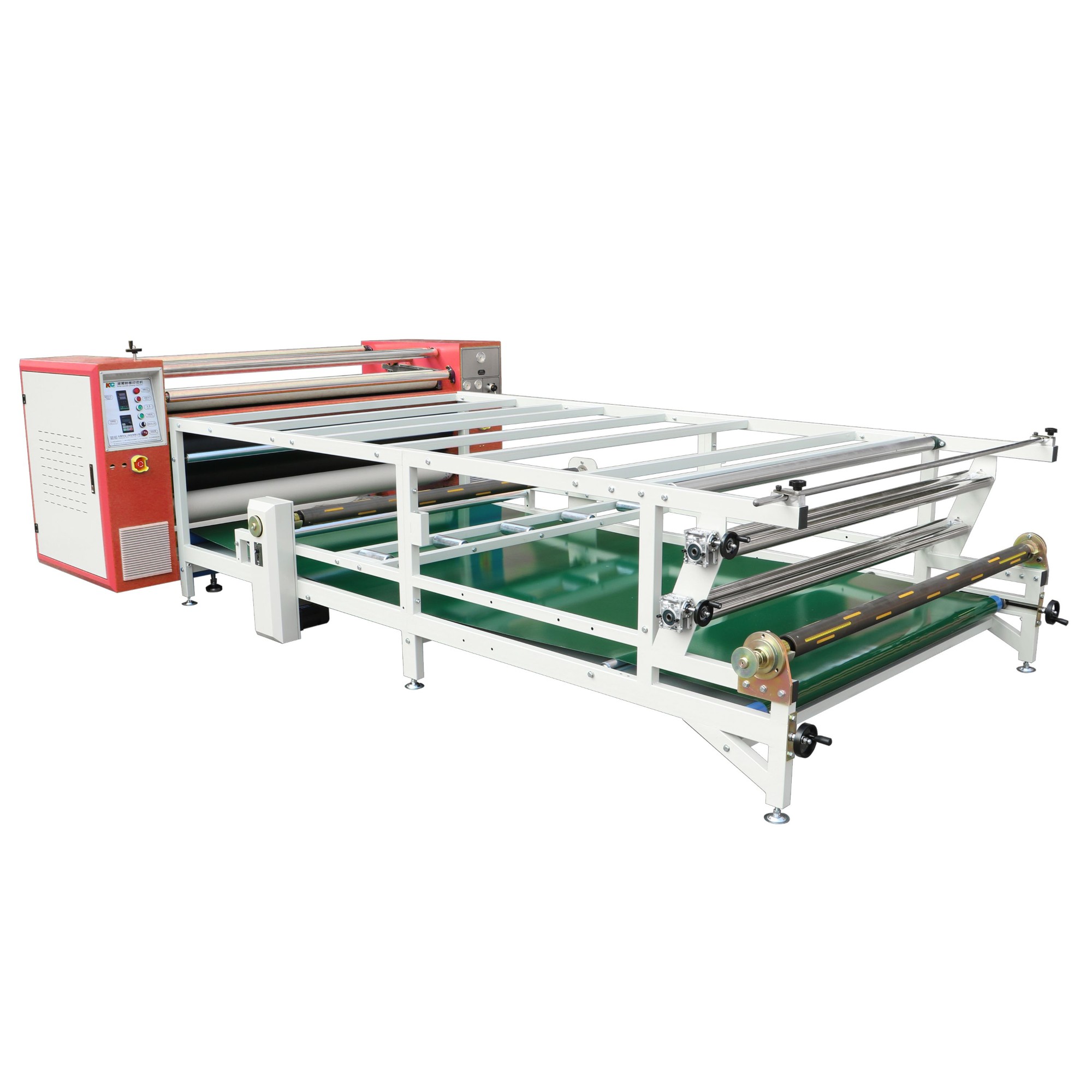

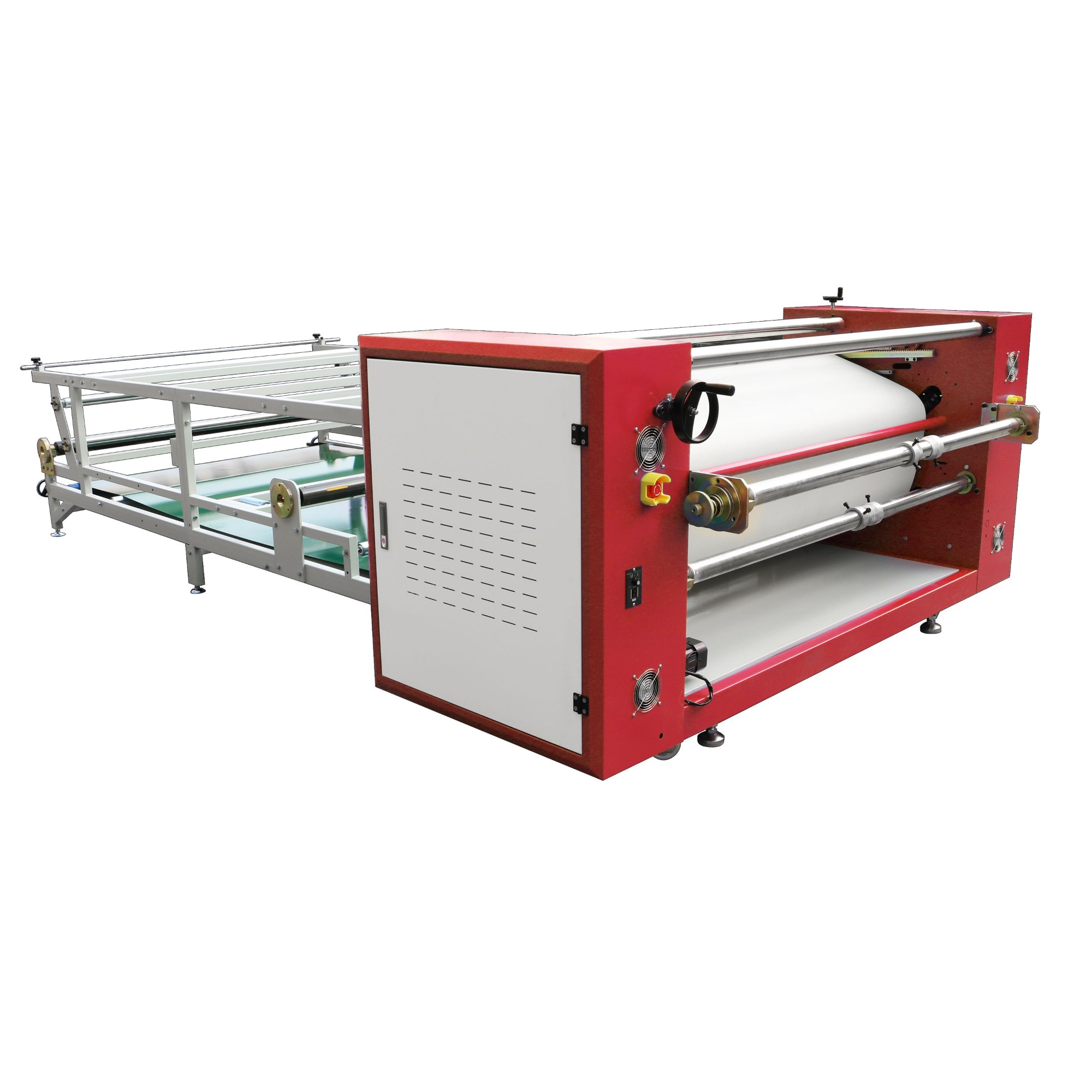

Roller sublimation transfer machine

  • Product Item: BA61170
  • Category: Single lanyard -BA
  • Views: 1105
  • Roller diameter: 610 mm
  • Roller Width: 1700 mm
  • Printing speed: 150-450 m/h
  • Voltage: 3 phase 220 V / 380 V
  • Product Manual:Roller sublimation machine for both cloth and pieces fabric, effective transfer width is 1.7 meters. 3.5 meters worktable.

    Main Features

    1. DuPont Blanket : Blanket is made of American DuPont materials, 10 mm thickness, good transfer effect, long service life.

    2. Single drum: Inside / outside cylinder finishing, cylindrical precision grinding machine, drum heating evenly, no color difference.

    3. Carbon brush slip ring: Carbon brush direct conductive ring, good conductive performance, low maintenance cost and long service life.

    4. Heating tube: Taiwan stainless steel heating tube, heat the conductive oil directly, temperature can raise to 200 ℃ with in 45 minutes.

    5. Universal bearing: we use the lasted universal bearing, which can effectively reduce the wear of bearing and reduce the loss of parts.

    Product Parameters

    Model BA61120 BA61170 BA61190
    Transfer width 1200 mm (47'') 1700 mm (67'') 1900 mm (74.8")
    Blanket size 1250*3480*10 mm 1750*3480*10 mm 1950*3480*10 mm
    heating Power 32.5 KW 40.5 KW 40.5 KW
    Heating media Oil
    Voltage 3 phase 220 V/380 V
    Number of heating elements 27
    Diameter of drum 610 mm
    transfer speed 150-450 m/h
    Max. Temperature 260 ℃
    Process Path feeding in through the top of drum
    Blanket separation method manual
    Sensor adjust the Blanket device no
    Function of roll-to-roll yes
    Function of piece-by piece yes
    Number of feeding rollers 3
    Number of collection rollers 2
    Number of air shaft no
    worktable yes, without glass
    Air compressor needed, 1 P, (not include)
    machine weight 1500 KG 1700 KG 1900 KG
    Worktable size 3.5*1.55*1.2 m 3.5*1.88*1.2  m 3.5*2.05*1.2 m
