Economy roller sublimation machine

  • Product Item: BA20120E
  • Category: Roller transfer machine-200mm
  • Views: 1555
  • Roller diameter: 200 mm
  • Roller Width: 1200 mm
  • Product Manual:Economy roller sublimation machine, the most basic configuration for sublimation transfer.
  • SPECIFICATION


    Main features:

    1. DuPont Blanket : Blanket is made of American DuPont materials, 10 mm thickness, good transfer effect, long service life.

    2. Single drum: Inside / outside cylinder finishing, cylindrical precision grinding machine, drum heating evenly, no color difference.

    3. Carbon brush slip ring: Carbon brush direct conductive ring, good conductive performance, low maintenance cost and long service life.

    4. Heating tube: Taiwan stainless steel heating tube, heat the conductive oil directly, temperature can raise to 200 ℃ with in 45 minutes.

    5. Universal bearing: we use the lasted universal bearing, which can effectively reduce the wear of bearing and reduce the loss of parts.

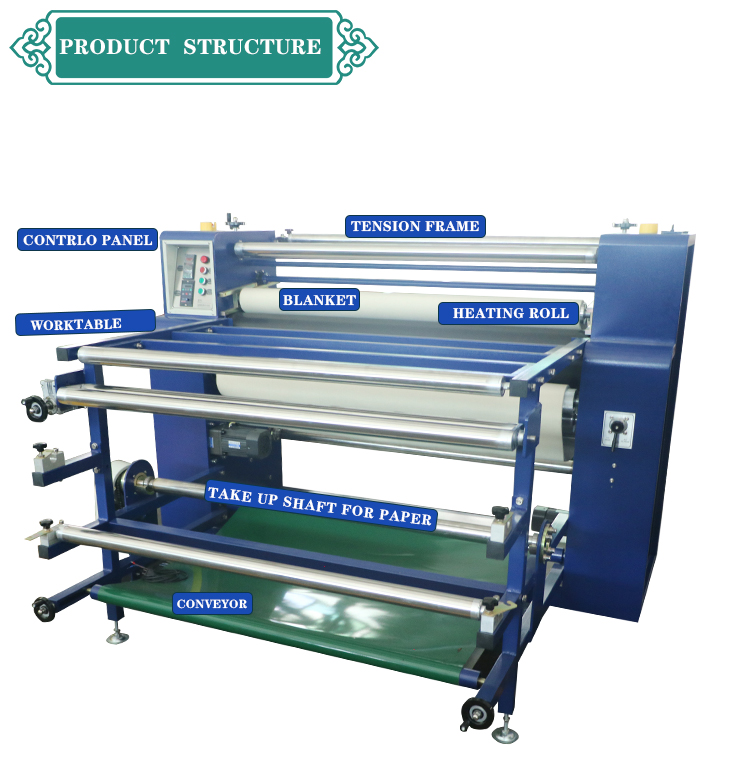

    Roller heat transfer machine
    Model BA20120E BA20120 BA20170
    Transfer width 1200 mm (47'') 1200 mm (47'') 1700 mm (67")
    Blanket size 1250*1360*10 mm 1250*1360*10 mm 1750*1360*10 mm
    heating Power 4.8 KW 4.8 KW 4.8 KW
    Heating media Oil
    Voltage 1 phase 110 V/220 V
    Number of heating elements 6
    Diameter of drum 200 mm
    transfer speed 40-60 m/h
    Max. Temperature 260 ℃
    Process Path feeding in through the top of drum
    Blanket separation method manual
    Sensor adjust the Blanket device no
    Function of roll-to-roll yes
    Function of piece-by piece yes
    Number of feeding rollers 3
    Number of collection rollers 1 (no sublimation paper collect shaft) 2
    Number of air shaft no
    worktable yes, without glass
    Air compressor needed, 1 P, (not include)
    machine weight 350 KG 400 KG 500 KG
    Worktable size 0.9*1.38*1 m 0.9*1.38*1  m 1*1.88*1 m


    Best printing machinery Co., LTD. is specialized in roller heat transfer machine, flatbed heat press machine, digital inkjet printer, digital cloth inkjet printer.

    Company is committed to digital printing technology research and development, has achieved fruitful results.

    Products:

    1. Digital machine series: Digital inkjet printer,  digital cloth inkjet printer for roll and pieces.

    2. Heat transfer machine seriesflatbed heat press machine, roller heat transfer machine, mainly for clothing and textile fabrics, cosmetics packaging, toy manufacturer, gift processing, daily necessities, ceramics and other metal products.
